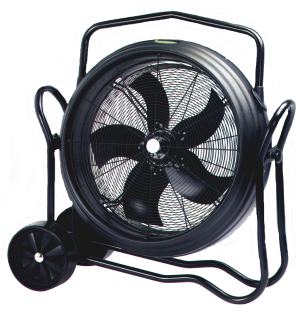

High volume fan
The Air-jammer high volume fan delivers a massive 12,500M3/hr (7350CFM) of air – enough for the most demanding
ventilation, cooling, drying or air circulation tasks.The Air-jammer is designed for use where high volume air movement is needed, for example in foundries, extruding plants, factories, workshops, warehouses, gymnasiums, and large out of town retail units.
Construction
The Air-jammer high volume fan is designed and constructed for industrial applications. It has a tough, durable ABS case, and an epoxy coated tubular steel frame. The fan motor is designed for continuous operation, with factory lubricated, sealed for life bearings and class F insulation.The output is set by a knob on the top of the fan casing. A stepless electronic speed controller allows the air flow to be set any where between 30% and maximum output.
The Air-jammer is very quiet. At full speed, its specially designed impellor produces only
58dBA, much less than other fans
of a similar size.The Air-jammer high volume fan is completely portable, with large easy roll castors, and carrying handles. The adjustable stand allows the fan angle to be changed to suit any application.
Specification |
||
| Model | Air-jammer230 | |
| Max airflow | M3/hr CFM |
12500 7350 |
| Max fan speed | RPM | 870 |
| Supply voltage | V | 230 |
| Maximum supply current | A | 2.8 |
| Power | W | 630 |
| Supply phase | 1 | |
| Supply frequency | Hz | 50 |
| Supply connection | 1.8m
lead fitted with 13A UK mains plug |
|
| Noise | dBA | 58 |
| Operating temperature | C | -40 to 70 |
| IP rating | 54 | |
| Weight | Kg | 40 |
| Width | mm | 1150 |
| Height | mm | 1150 |
| Depth | mm | 500 |
|
||
Activair high volume fans are manufactured in the UK, and are CE marked.
Electricity supply requirements.
The Air-jammer high volume fan is designed for use with a 230V 50Hz electrical supply. It is suitable for use in the UK, most of Europe and the Middle East, but not the USA.1 year warranty
Air-jammer high volume fans are manufactured to the highest standards. We are confident they will give years of trouble free operation. However in the unlikely event a fault does occur, they have a full 1 year return to base parts and labour warranty.Alternative models
Looking for 110v portable fans, smaller or larger sizes? See the following links:-
