Industrial evaporative cooler

Industrial evaporative coolers are used to cool open plan buildings such as warehouses, factories and large retail units. Mounted either on the roof or on outside walls they produce high volumes of filtered, cooled fresh air reducing the indoor temperature and creating a comfortable environment.

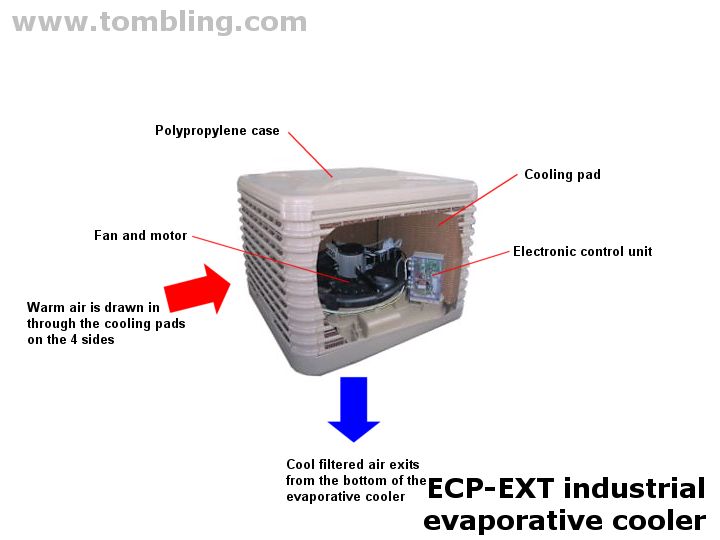

The ECP-EXT is a powerful industrial evaporative cooler which will cool an area of up to 200 square meters (2150 sq.ft.). It is much cheaper than equivalent air conditioners and costs up to 90% less to run, bringing cooling to buildings, which were previously considered too expensive to cool.

Quick and easy installation

The ECP-EXT is designed for quick and easy installation, it is supplied ready built, and  only needs a mains water supply and 230V single phase supply. Each unit is supplied with a wall mounted control unit, external isolation and a built in RCD.

ECP-EXT industrial evaporative coolers are designed for installation by your own engineers, and are supplied with a detailed installation manual, and operator’s guide.

Features

• ¼ capital cost and 1/10th running cost of an equivalent refrigerated air conditioner
• Up to 34kw cooling – 10C temperature drop at 35C and 35% RH
• Coverage – up to 200m2 (2150sq. ft.)
• Easy installation – only needs a mains water supply and single phase 230V electricity supply
• Supplied pre-assembled – ready for installation
• No specialist tools or skills required – designed to be installed by your own engineers
• Built in diagnostics – allowing most faults to be detected and dealt with on site

Industrial evaporative cooler - specification

Specification
Model		ECP-INT
Maximum airflow	m3/hr CFM	16000 9417
Supply voltage	V	230
Supply Frequency	Hz	50
Power consumption	W	1500
Water consumption	Litres/hr.	40
Operating weight	kg	92
Width	mm	1170
Height	mm	950
Depth	mm	1170

Warranty

The ECP-EXT industrial evaporative cooler is manufactured to the highest standards in the UK, and we are confident it will give years of trouble free operation. However in the unlikely event a fault does occur it has a full 1 year return to base parts and labour warranty.

Electricity supply requirements

The ECP-EXT industrial evaporative cooler is designed for use with a 230V 50Hz single phase electricity supply, and is suitable for use in the UK, most of Europe and the Middle East.

It cannot be used in countries that have 120V 60Hz electricity supplies, such as the USA.

Built for the UK market

Unlike other evaporative coolers the ECP-EXT has been specifically designed to take into account the UK’s climate, water quality and health and safety regulations.

ECP-EXT industrial evaporative coolers fully comply with ACOP L8 guidelines, and exceed the requirements of the HSC Approved Code of Practise and Guidance relating to the control of legionnaires disease.

Need more information?

What you should know:

• Installing fixed evaporative coolers

Related products:

• Overhead evaporative cooling system

Quotations: To receive a free written quotation within 24 hours, click on the red ‘CLICK for a Quote’ button above. If you prefer to speak to someone, click on the ‘Call us now’ picture to the right.

The ECP-EXT industrial evaporative cooler is designed to cool large open spaces, by delivering high volumes of cooled, filtered fresh air into the building. In doing so they provide powerful cost effective cooling for buildings considered too costly to cool by other means.
