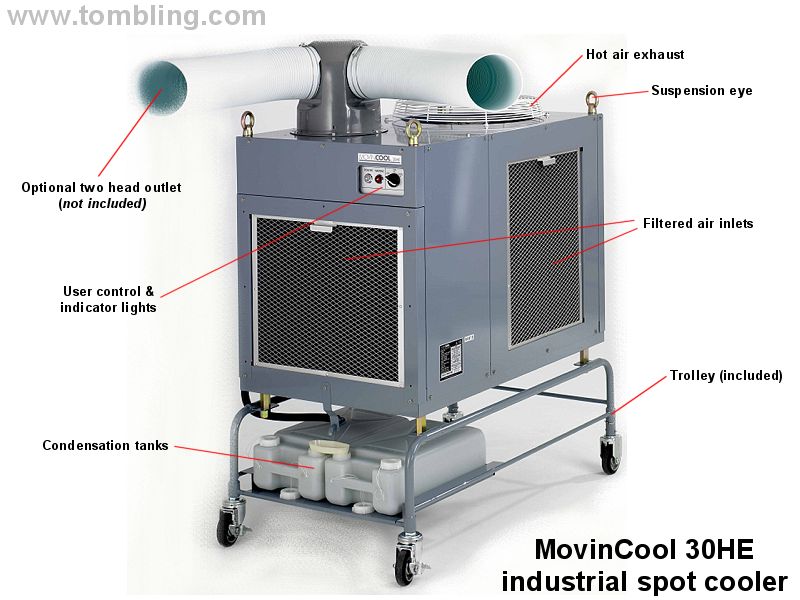

Industrial spot cooler

The MovinCool 30HE is a solid reliable 32,400 BTU (9.5kw) industrial spot cooler designed to cool people, equipment and processes in the harshest environments. Capable of continuous operation in ambient temperatures of upto 45C (113F), it is suitable for cooling the hottest workplaces such as foundries, laundries, kitchens, etc.

The 30HE industrial spot cooler is fully weatherproofed for outdoor use. It is supplied on a trolley stand for portability, but can also be installed as a fixed unit, either siting on a flat surface, or suspended overhead using suspension eyes.

Features

• 32400 BTU (9.5kw) cooling capacity
• Totally self contained – one compact unit
• Portable – supplied with trolley kit featuring easy roll locking castors
• Easy to install – position, plug in, and turn on
• Durable – constructed for industrial applications in harsh environments
• Remote operation – upto 30m cold air duct and 15m for the hot air exhaust duct
• Minimal maintenance – clean the air filters 2 or 3 times a year
• Safety – fan motor and compressor overload
• Low environmental impact – R407 refrigerant

Ducting options

The 30HE industrial spot cooler produces 1500 cubic meters of cold air per hour. It can be used free blowing to cool small areas, or with upto 30m (98ft.) of ducting to deliver cold air into difficult locations.

When the 30HE is sited inside the area being cooled, upto 15m (49ft.) of flexible ducting can be attached to the hot air exhaust.

30HE industrial spot cooler specification

Specification
Model		30HE
Cooling output	BTU Kw	32400 9.5
Airflow	cfm m3/hr.	882 1500
Supply voltage	V	400
Current consumption	A	6
Power consumption	W	3400
Supply phase		3
Supply frequency	Hz	50
Power wiring	mm2	1.5
Refrigerant		R407C
Noise level	db	70
Weight	Kg	157
Width	mm	650
Depth	mm	1100
Height	mm	917

1 year warranty

The 30HE industrial spot cooler is manufactured in the EC to the highest standards. We are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 1 year return to base parts and labour warranty.

Electricity supply requirements.

The 30HE spot cooler is designed for use with a 3 phase 400V 50Hz electrical supply, and is suitable for use in the UK, most of Europe and the Middle East.

It is not suitable for use in countries that use 60Hz electricity supplies, such as the USA.

If you require more information

What you should know:

• Positioning your spot cooler
• Basic dos and don’ts for your industrial spot cooler

Related articles:

• Industrial spot cooler user manual
• Applications of industrial spot coolers

Quotations: To receive a free written quotation within 24 hours, click on the red ‘CLICK for a Quote’ button above. If you prefer to speak to someone, click on the ‘Call us now’ picture to the right of this page.

The 30HE industrial spot cooler is a self-contained, tough, durable machine, designed for use in the hottest workplaces. By delivering cold air right where you need it, it saves you money, while providing reliable cooling for people, heat sensitive equipment, and production processes.
