110v/230v portable extractor fan
portable fume extractor fan
click to expand

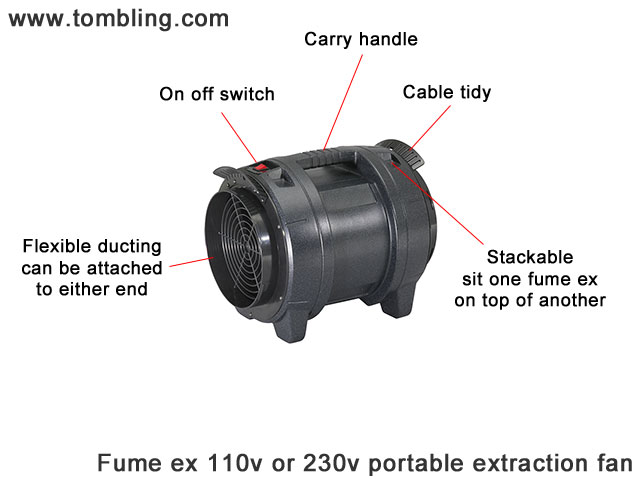

A tough 3-in-1 portable air mover designed to cool, ventilate and extract air and fumes from enclosed spaces. Available in either 110v or 230v versions.

3-in-1 portable fan

  • Extract fumes, stale or hot air from enclosed spaces
  • Ventilate enclosed spaces, by drawing fresh air in from outside
  • Cool spaces, by drawing cold air in from elsewhere

The Fume-Ex is designed for air movement only, it is not suitable for dust extraction.

High capacity air movement at the flick of a switch

Supplied ready to use, simply plug the Fume Ex into a suitable socket, attach the 5m flexible duct, and flick the switch for instant extraction, ventilation or cooling.

Flexible ducting
portable extaction fans
click to expand

The Fume Ex portable extractor fan is supplied with one 5m length of 305mm diameter tough self-supporting flexible ducting, which can be attached to either the inlet (suck air) or outlet (blow air) of the fan. When the ducting is not being used it folds away in it's own carry all.

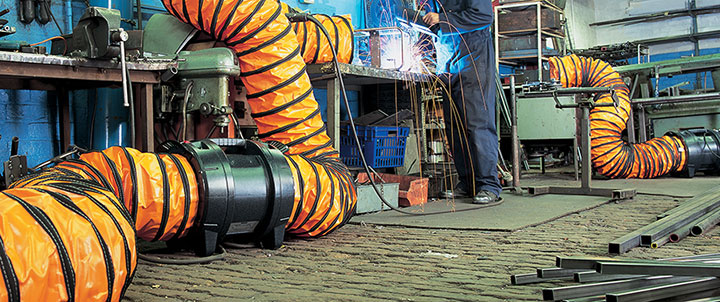

An additional 5m duct can be purchased separately, which allows the fan to be used in the middle of a 10m duct - see the picture to the right.



Activair Fume Ex portable extractor fan - specification

Specification

Model   FumeEx- 230 FumeEx- 110
Airflow M3/hr
CFM
3250
1912
Fan blade diameter mm 310
Supply voltage V 230 110
Maximum supply current A 2.4 5
Power W 550
Supply phase   1
Supply frequency Hz 50
Supply connection   2.5m lead fitted with
13A UK mains plug
2.5m lead fitted with
16A 3pin yellow BSEN60309 plug
IP rating   54
Operating Temperature C -20 to + 40
Noise dB(A) 73
Weight excluding ducting Kg 12.9
Width mm 405
Height mm 425
Length mm 500
Ducting diameter mm 305
Ducting length open / folded m 5 / 0.45
Ducting weight Kg 5.5
Price ex. delivery & VAT   £369.00 £369.00
Price inc. delivery & VAT   quote for portable heater quote for portable heater
    In stock In stock
Made in the UK - United Kingdom Activair portable extraction fans are manufactured in the UK, and are CE marked.

Electricity supply requirements.

The Fume Ex portable extractor fan is designed for use with a 230V or 110V 50Hz electrical supply. It is suitable for use in the UK, most of Europe and the Middle East, but not the USA.

1 year warranty

Our portable extractor fans are manufactured to the highest standards, and we are confident they will give years of trouble free operation. However in the unlikely event a fault does occur, they have a full 1 year return to base parts and labour warranty.

The fume-ex is designed for air movement only, using it to extract dust will invalidate the warranty.

Important safety information

The Fume Ex portable fan is intended for indoor use only, and should not be used outdoors. Do not allow the the unit, lead or plug to come into contact with water.

The Fume Ex is not suitable for use where explosive or flammable fumes may be present.
