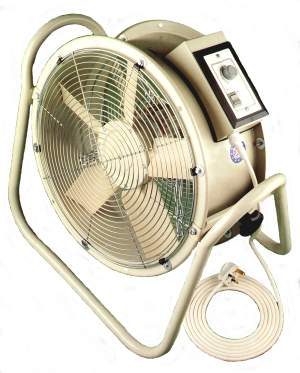

Portable fans for factories, workshops and warehouses

Activair portable fans are used to provide high volume air movement in commercial premises such as factories and workshops to:

• Spot cool machinery - to prevent overheating and improve efficiency
• Ventilate buildings - by drawing fresh air in
• Cool workers - working in hot spots, in direct sunlight, wearing heavy protective clothing or engaged in strenuous physical work
• Recirculate air - to eliminate temperature gradients and pockets of stagnant air

Sizes of Activair portable fans

Activair portable fans are available with either 450mm (18") or 560mm (22") diameter fans. Producing 5400 m3/hr (3180cfm) or 10800 m3/hr (6360cfm) respectively. Activair portable fans have a built in on-off switch and speed controller, which allows the air volume to be adjusted from approximately 40% to full output.

Features of Activair portable fans

Activair portable fans have a broad base for stability. Built in carrying handles allow them to be easily moved from place to place. Each portable fan has a locking tilt adjustment that allows the outlet air to be directed up or down as required.

The fan motors are totally enclosed, sealed for life, and fully protected against overload. Activair portable cooling fans need no maintenance, and are suitable for use in damp and dusty environments.

Activair portable fans are manufactured from mild steel for long life. The casings and stands are coated in durable corrosion resistant epoxy paint. Bright zinc plated metal finger guards protect users from harm.

Uses of Activair portable fans

Activair portable fans are protected to IP54 and are suitable for indoor and outdoor use. They are widely used in:

• Machine shops and workshops
• Garages and body repair shops
• Dairies, barns and stables
• Commercial glasshouses, packing sheds and loading bays
• Factories, foundries, plastic extrusion plants and label printing plants
• Building and construction sites
• Golf courses and bowling greens

Activair portable fan specification

Specification
Model		PF450	PF560
Fan diameter	mm	450	560
Maximum Airflow	m3/sec	1.5	3.0
	CFM	3180	6360
	m3/hr	5400	10800
Supply voltage	V	230	230
Supply phase		1	1
Supply frequency	Hz	50	50
Supply connection		13A UK mains plug	13A UK mains plug
Sound level	dBA	63	69
Colour		RAL7032 beige	RAL7032 beige
Operating temperature range	C	-20 to +50	-20 to +50
Protection class		IP 54	IP 54
Weight	kg	17	25
Width	mm	671	791
Height	mm	678	733
Depth	mm	460	460

Click on the icon, for a printer friendly data sheet.

Electricity supply requirements for Activair portable fans

Activair portable cooling fans are designed for 230V single phase 50Hz electrical supplies, and are suitable for use in the UK, most of Europe, Eastern Europe and the Middle East, but not the USA.

Activair portable fans are ready to use straight from the box

Activair portable fans are supplied with a 4 metre mains lead fitted with a standard 13A UK mains plug. They are ready to use straight from the box. No assembly or special installation is needed.

Reliable, portable and economic cooling where you need it

Activair portable fans cost less than 50 pence a day to run. They are widely used throughout the UK and Europe in factories, garages, workshops, etc. helping businesses to improve their working environment, increase productivity, and reduce staff absenteeism.

W. Tombling Ltd. have been manufacturing heaters and portable fans since 1927. Our portable fans are manufactured to the highest standards. We are confident they will give you excellent service. However, in the unlikely event that a problem may occur, our cooling fans are covered by a full 2 year parts and labour guarantee.

For more information or a quotation on our portable fans
