Portable spot cooler

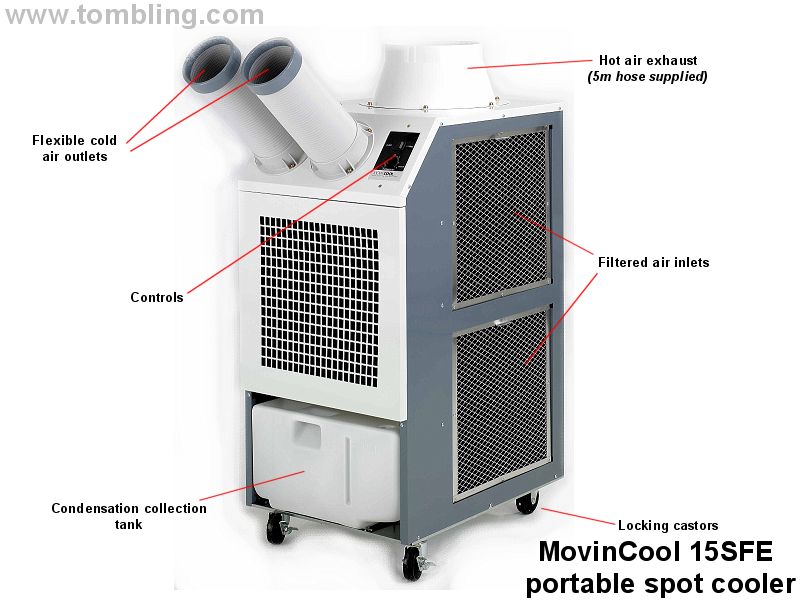

The MovinCool 15SF portable spot cooler is a compact, totally self-contained unit with a massive 15,200 BTU (4.4kw) cooling capacity. Simply roll the spot cooler into the area that requires cooling, plug in, and the unit is ready to cool – no need for costly installation or alteration work.

The two flexible outlet ducts focus the entire cooling capacity of the portable spot cooler towards the area most in need, delivering powerful streams of chilled air that reduce the temperature by up to 16C (60F).

Developed for the industrial market the 15SF portable spot cooler is robust, reliable and virtually maintenance free. In demanding environmental conditions it has an average life expectancy of 12 years.

Designed for continuous operation in high ambient temperatures of up to 38C (100F) it is suitable for a wide range of cooling applications including people, processes, or heat sensitive equipment such as computer servers and telecommunication equipment.

Features

• 15200 BTU (4.4kw) cooling capacity
• Totally self contained – in one compact housing
• Portable – easy roll, locking castors
• Easy to install – position, plug in, and turn on
• Durable – constructed for use in harsh environments, and for industrial applications
• Minimal maintenance – clean the air filters 2 or 3 times a year
• Safety – fan motor and compressor overload cut out, anti-freezing thermostat, and condensate tank overflow warning
• Low environmental impact – R407 refrigerant

How portable spot coolers work

Portable spot coolers don’t create cooling; they simply relocate heat from one place to another.

The 15SF portable spot cooler draws warm air in through its filters and produces cold air from the two flexible outlets. Heat generated by this process is exhausted through a vent mounted on the top of the cooler.

A 5m (16ft.) flexible duct is supplied with the unit, to carry the hot air away from the area being cooled.

15SF portable spot cooler specification

Specification
Model		15SF
Cooling output	BTU kW kcal/h	15200 4.4 3800
Cold air output	cfm m3/hr.	470 800
Intake air temperature range Maximum relative humidity	C %	20 to 38 50
Hot air exhaust	m3/hr	1500
Supply voltage	V	230
Current consumption	A	8.2
Power consumption	W	1700
Supply phase		1
Power factor	%	90
Supply frequency	Hz	50
Supply connection		3m lead fitted with 13A UK mains plug
Refrigerant		R407C
Cold air duct length Diameter	mm mm	500 125
Exhaust Length Diameter	m mm	5 300
Noise level	db	64
Weight	Kg	76
Width	mm	490
Depth	mm	670
Height	mm	1045

1 year warranty

The 15SF spot cooler is manufactured in the EC to the highest standards. We are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 1 year return to base parts and labour warranty.

Electricity supply requirements.

The 15SF portable spot cooler is designed for use with a 230V 50Hz electrical supply, and is suitable for use in the UK, most of Europe and the Middle East.

It is not suitable for use in countries that have 120V 60Hz electricity supplies, such as the USA.

If you require more information

What you should know:

• Positioning your spot cooler
• Basic dos and don’ts for your portable spot cooler

Related articles:

• Portable spot cooler manual
• Applications of portable spot coolers

Quotations: To receive a free written quotation within 24 hours, click on the red ‘CLICK for a Quote’ button above. If you prefer to speak to someone, click on the ‘Call us now’ picture to the right of this page.

When you need powerful localised cooling, and maximum portability, the 15SF portable spot cooler fits the bill. Self contained, portable, and requiring little or no installation, this unit is instantly ready to provide cool air anywhere.

The 15SF spot cooler is designed to work in the hottest environments such as production lines, outdoor events, manufacturing processes, injection moulding, metal forming and much more. By cooling only the area that needs it, the 15SF portable spot cooler saves you money while cooling people, protecting heat sensitive equipment, and speeding up production processes.
