Wall mounted electric infrared radiant heaters

radiant heaters - wall mounted

Activair wall mounted electric radiant heaters are designed for heating small commercial and industrial buildings such as shops, veterinary surgeries, studios, security offices, etc.

They produce beams of medium wave infrared energy which heat people and objects directly without warming the surrounding air. Making them ideal for difficult to heat or drafty buildings, where conventional warm air heating using fan heaters would be uneconomical.

Heavy duty wall mounted radiant heaters

Activair wall mounted radiant heaters are ruggedly constructed from aluminium, coated with a tough powder coat finish. They have no moving parts, are virtually maintenance free, and will provide years of trouble free operation.

Being much tougher than glass tubes, ceramic emitters are much better at withstanding vibration and accidental knocks and shocks.

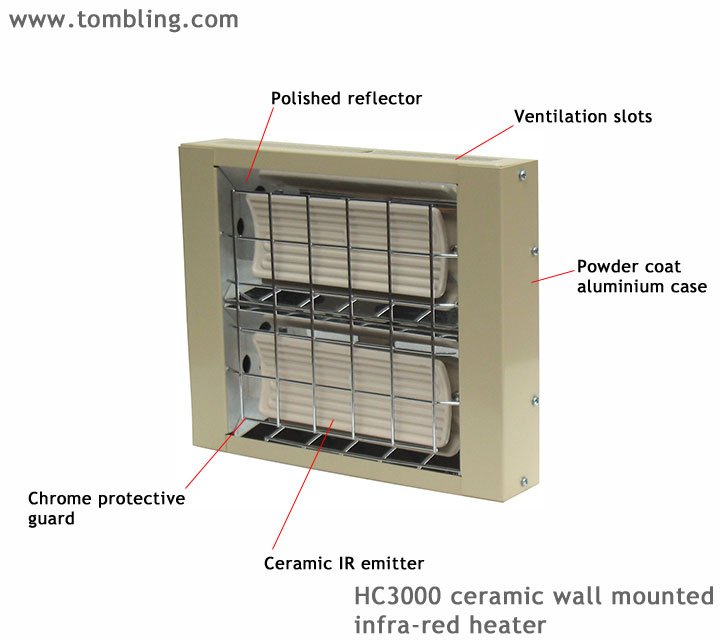

HS3000 wall mounted radiant heater

Glare free infra-red radiant heaters

Activair wall mounted radiant heaters are fitted with ceramic infrared emitters which unlike halogen tubes don't produce an uncomfortable glare. They are are completely harmless to the eye, even after prolonged exposure, and are often used in medical and veterinary applications.

Ceramic infra-red heaters do not produce a distracting red light, so they are suitable for use in photographic studios and areas where colour comparison or matching is taking place.

Activair 230V wall mounted radiant heaters - specification
Model   HC1500 HC3000 HC4500
Output Kw 1.5 3 4.5
Supply voltage V 230 230 230
Current A 6.5 13 19.6
Mounting height
(min - recommended - max)
m 2.2 - 2.5 - 3.5 2.5 - 3 - 4 3 - 4 - 5
Approximate spread of the IR beam at the recommended fixing height.
See below for how to determine the size and number of heaters required
sq.m 13 16 19
Minimum
Air gap to ceiling
mm 450 450 450
Minimum safe distance to objects in front of heater m 1.5 1.5 2
IP Rating   10 10 10
Maximum
Ambient Temp.
mm 30 30 30
Dimensions
W x D x H
mm 405 x 72 x 190 405 x 72 x 345 405 x 72 x 495
Weight kg 1.75 2.75 3.5
Prewired with 1m high temperature silicon rubber cable   Yes Yes No
Suitable for use with a 13A plug
NOT SUPPLIED
  Yes Yes No
Price ex. delivery & VAT   £129.00 £179.00 £249.00
Price inc. delivery & VAT   quote quote quote
    in stock for immediate delivery in stock for immediate delivery in stock for immediate delivery

Activair wall mounted radiant heaters are approved to BS EN 60335-2-30 and CE marked.

Quick and easy installation of wall mounted radiant heaters

Activair radiant heaters are supplied with full installation instructions, and wall bracket which allows for vertical and horizontal adjustment.

All models have cut-outs for suspension chains or wires.  See frequently asked questions for more details.

The HC1500 and HC3000 are supplied with a fitted mains lead and are suitable for DIY installation. They can be fitted  with a standard 13A UK plug.

The HC4500 is supplied without a mains lead and must only be installed by a qualified electrician in accordance with local wiring regulations.

Energy saving controls

Ceramic radiant heaters are very inexpensive to run, however their running costs can be reduced further by the use of energy saving controls:-

Energy saving controls
HPIR - infra red movement detector Movement detector (HPIR) Maximum load 3kw
Suitable for indoor or outdoor use
quote
HVR1 - manual output controller Manual output control (HVR1) Maximum load 3kw
Not for outdoor use
quote
HTIM - One touch timer for infra-red heaters Manual timer (HTIM) Maximum load 4.5kw
Suitable for indoor or outdoor use
quote

Energy saving controls must only be installed by a suitably qualified person in accordance with local wiring regulations.

Determining the size and number of radiant heaters requiredon line radiant heater calculator

As with any form of heating it is important that the correct size heater is used. Use our on-line calculator or, click here for details on manual calculations.

1 year parts and labour warranty

Our wall mounted radiant heaters are manufactured to the highest standards, and we are confident that they are completely reliable. However, in the unlikely event a fault may occur, they have a full 1 year return to base warranty.

Electricity supply requirements for wall mounted radiant heaters

Activair wall mounted radiant heaters are designed for 230V single phase electric supplies, and are suitable for use in the UK, most of Europe, Eastern Europe and the Middle East, but not the USA.

For more information

Activair wall mounted electric infrared radiant heaters are designed to heat people and objects, not the surrounding air, making them an economical heating solution for close heating in portacabins, changing rooms, storerooms, etc.

For more information see the wall mounted radiant heater faq or download the user manual (pdf).

Related productsquartz halogen infra red heaters

Wall or overhead mounted quartz halogen infra red heaters for use where glare is not an issue. Ideal for high ceilings where the heater will be mounted out of the line of sight.
