Evaporative cooling system

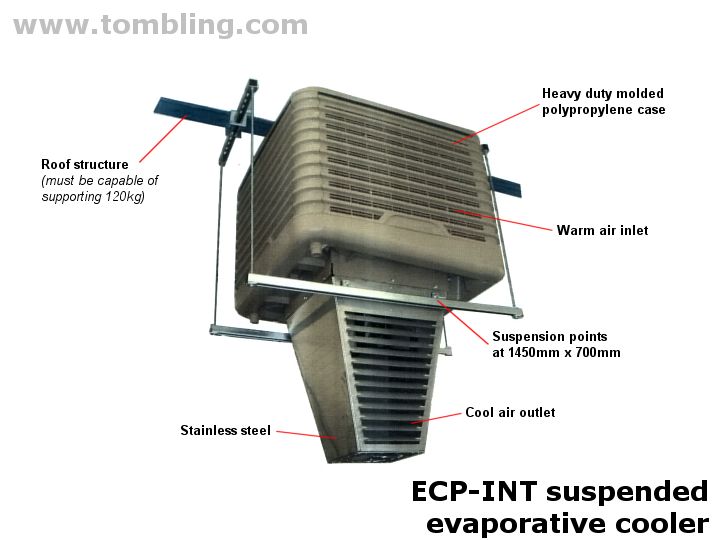

Evaporative cooling systems provide cost effective cooling for medium and large commercial and industrial buildings. Mounted overhead, to free up valuable floor space the ECP-INT internal evaporative cooler will cool areas of up to 200m2 (2150sq.ft.).

The ECP-INT evaporative cooling system can be installed very quickly with minimum disruption. Requiring only a mains water supply and single phase 230V electricity it is designed to be installed by your own electricians or fitters.

Low cost, efficient evaporative cooling systems

Compared to refrigerated air conditioning systems, evaporative cooling systems are up to 75% cheaper to purchase, and use 90% less electricity.

One ECP-INT evaporative cooler can cool and area of up to 200 square meters for as little as 10p per hour, while delivering up to 35kw of cooling for every 1kw of electricity consumed!

Hygienic and safe coolers

The ECP-INT evaporative cooling system is one of the most hygienic on the market, the plastic and stainless steel construction stops corrosion and slime forming, and the unit periodically flushes its sump to maintain water quality.

It is fully risk assessed for legionnaires disease in accordance with government ACOP L8 guidelines.

To ensure electrical safety all ECP-INT evaporative cooling systems are provided with external electrical isolation and integral RCD protection.

Features

• ¼ capital cost and 1/10th running cost of an equivalent refrigerated air conditioner
• Up to 34kw cooling – 10C temperature drop at 35C and 35% RH
• Easy installation – requires a mains water supply and single phase 230V electricity supply
• Supplied assembled – ready for installation
• No specialist tools or skills required – designed to be installed by your own fitters/electricians
• Built in diagnostics – allowing most faults to be detected and dealt with on site

Evaporative cooling system - specification

Specification
Model		ECP-INT
Maximum airflow	m3/hr CFM	16000 9417
Supply voltage	V	230
Supply Frequency	Hz	50
Power consumption	W	1500
Water consumption	Litres/hr.	40
Operating weight	kg	120
Width	mm	1100
Height	mm	1700
Depth	mm	1100

Warranty

The ECP-INT evaporative cooling system is manufactured to the highest standards in the UK, and we are confident it will give years of trouble free operation. However in the unlikely event a fault does occur, it has a full 1 year return to base parts and labour warranty.

Electricity supply requirements

The ECP-INT evaporative cooling system is designed for use with a 230V 50Hz electrical supply, and is suitable for use in the UK, most of Europe and the Middle East.

It is not suitable for use in countries that have 120V 60Hz electricity supplies, such as the USA.

Wall mounted controller

The ECP-INT evaporative cooler is supplied with a wall mounted controller and 30m of cable. The controller allows operators to control the cooler as follows:

On – Off
Select fan only or fan and evaporative cooling
Select 5 fan speeds
Select automatic or manual operation

The controller also has a fault indicator which flashes when a fault occurs.
