cooling fansActivair portable high volume fans --------------

You are here:- home > cooling index > fan index > large portable fan

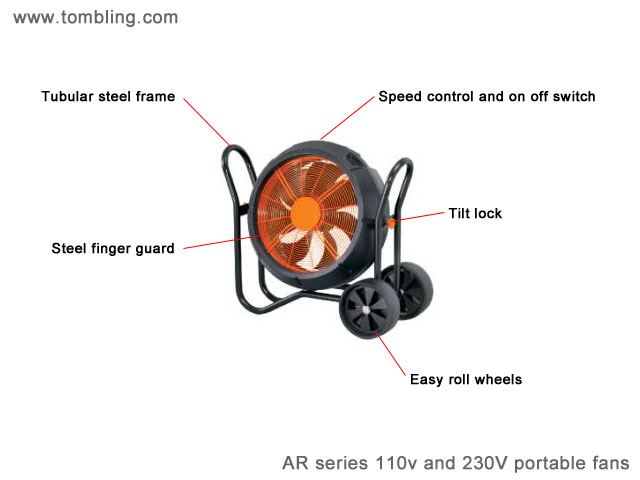

230v and 110v large portable fans
high volume fan
click to expand

Large industrial 230V and 110V 500mm diameter portable fans with two speed settings. Maximum output 6450M3/hr  – enough for the most demanding ventilation, cooling, drying or air circulation tasks.

Powerful and virtually indestructible, our AR500 portable electric fans are designed to withstand commercial and industrial use in pressure moulding plants, factories, workshops, warehouses, commercial glasshouses, and large out of town retail units.

Designed for demanding applications

  • Tough, durable ABS case
  • Powder coated steel finger guards
  • Epoxy coated tubular steel frame
  • Sealed for life motor with class F insulation
  • Top mounted high/low speed/off switch

Portable and flexibleAR500 fan in a warehouse

The AR500 portable electric fan is completely portable, with large easy roll castors, and handles.

The adjustable stand allows the fan to be tilted and locked at any angle.

;
Activair AR500 portable fans - specification

Specification

Model   AR500- 230 AR500- 110
Maximum airflow M3/hr
CFM
6450
3800
Fan blade diameter mm 500
Supply voltage V 230 110
Maximum supply current A 3.3 7
Power W 600
Supply phase   1
Supply frequency Hz 50
Supply connection   1.8m lead fitted with
13A UK mains plug
1.8m lead fitted with
16A 3pin yellow BSEN60309 plug
IP rating   54
Weight Kg 29
Width mm 960
Height mm 850
Depth mm 435
Noise (max speed) dBa 70
Price ex. delivery & VAT   £449.00£449.00
Price inc. delivery & VAT   quote for portable heater quote for portable heater




Made in the UK - United Kingdom Activair high volume fans are manufactured in the UK, and are CE marked.

Electricity supply requirements.

The AR500-230 electric fan is designed for use with a 230V 50Hz electrical supply. It is suitable for use in the UK, most of Europe and the Middle East, but not the USA.

The AR500-110 is fitted with a 16A 3 pin yellow BS EN60309 plug for use with 110V 50Hz electrical supplies

1 year warranty

Our fans are manufactured to the highest standards. We are confident they will give years of trouble free operation. However in the unlikely event a fault does occur, they have a full 1 year return to base parts and labour warranty.

The AR500 is a powerful 500mm portable high volume fan, delivering a massive 6450M3/hr of cool air, enough for cooling and ventilation in the most demanding environments.
