Tripod mounted portable infrared heaters

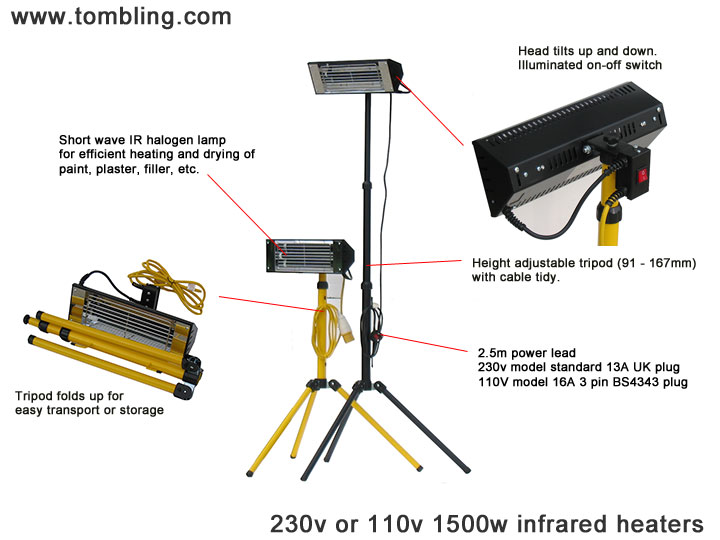

hq1500p portable infrared heater and tripod

The HQ1500P tripod mounted portable infrared heater is a versatile, lightweight, easily transportable quartz heater, which has been designed for general heating and drying applications.

The HQ1500P-LV 110v version is intended for use on construction sites, and in workplaces where the use of 230v portable equipment is prohibited.

The HQ1500P produces 1.2 micron shortwave infrared heat which is ideal for:

  • Directly heating workers
  • Drying paint and plaster
  • Curing adhesives and GRP

Versatile tripod mount

The HQ1500P is supplied in three parts, ready for quick and easy assembly:
  • The heater head
  • Switch, bracket and cable
  • Tripod

The tripod height is easily adjustable between 91cm and 167cm. The heater head tilts up and down, allowing the infrared heat to be directed exactly where it's needed.

When the heater is not in use the cable wraps around the cable tidy on the tripod.

The heater quickly breaks down and the tripod folds up for easy storage and transport.

Activair HQ1500P portable infrared heaters

Specification

Model   HQ1500P HQ1500P-LV
Element rating W 1500 1500
IR wavelength microns 1.2 1.2
Voltage V 220 - 240V 50/60Hz 110V - 50/60Hz
Maximum phase current A 6.25 12.5
Cable length m 2.5 2.5
Cable type   H05VV-F Blue H05VV-F Yellow
Plug type   Standard 13A UK plug
BS1363
110V 16A 3 pin
BS EN 60309
IP Rating   20 20
Weight (inc tripod) kg 6 6
Max width mm 750 750
Height (max - min) m 1.67 - 0.91 1.67 - 0.91
Depth mm 750 750
Heater head (h - w - d) mm 140 - 400 - 90 140 - 400 - 90
Price ex delivery & VAT   £179.00 £179.00
Price inc. delivery & VAT   quote for offshore heaters quote for offshore heaters
    immediate delivery immediate delivery

Activair portable infrared heaters are fully approved to BS EN 60335-2-30 and are CE marked.

Electricity supply requirements for Activair portable radiant heaters

The HQ1500P portable infrared heater is suitable for use in the UK, most of Europe, Eastern Europe and the Middle East. It is supplied with a standard 13A UK plug, but can also be supplied with a blue 230V 16A 3 pin BS EN60309 industrial plug if required.

The HQ1500P-LV requires a 16A 110V electricity supply and is fitted with a yellow 110V 16A 3 pin BS EN60309 plug.

Accessories for 110V HQ1500P-LV
3000VA continuous rated
vented heater transformer
230V input - 110V out via
1 x 32A and 1 x 16A outlet.
quote
14m extension lead 110V extension lead, 16A plug to 16A socket. quote
32A to 16A adaptor 110V 32A plug to 16A socket.
Allows a second HQ1500P-LV to be plugged into the 32A outlet of our transformer.
quote

Replacement Infrared lamps

The HQ1500P infrared heater is fitted with a 1500W halogen filled quartz linear lamp with a tungsten element, which operates at approximately 2200 degrees C and is housed in a quartz sleeve to filter out white light and emit short wave infrared radiant heat at 1.2 microns.

Under normal use the lamp should last approximately 2000 hours, replacement lamps are available as follows:

Replacement Lamps For HQ1500P Heaters
230V IR lamp 220V - 240V halogen filled quartz lamp with tungsten element for HQ1500P quote
110V IR lamp 110V - 120V halogen filled quartz lamp with tungsten element for HQ1500P-LP quote

Please note: These lamps are only for use in our HQ1500P infrared heaters. Users of other makes or heaters should contact their original supplier for replacement lamps.

Guarantee

Activair portable infrared heaters are manufactured to the highest standards, and we are confident that they are completely reliable. However, in the unlikely event a fault may occur, they have a full 1 year return to base parts and labour guarantee.

Please note the infrared lamps are consumable items, and as such are not covered by the guarantee.

Downloads

Download the user instructions (pdf).

Portable space heating, zone heating and spot heating

The HQ1500P lamp reaches full output almost instantly and emits 1.2 micron shortwave infrared heat, which is particularly suited for general space heating, zone and localised spot heating and drying.

The height adjustable tripod conveniently folds up for transport and storage.
