cooling fansActivair portable high volume fans --------------

You are here:- home > cooling index > fan index > large cooling fan

This item is discontinued

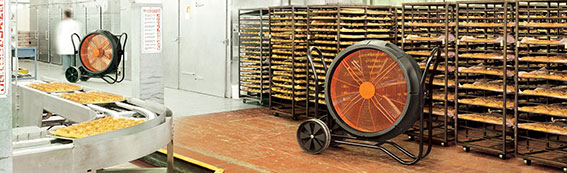

high volume fan
click to expand

Versatile, high performance industrial 800mm diameter cooling fans available in 110v and 230v versions. Variable output from 1400M3/hr to 18000M3/hr  – ideal for larger areas.

Powerful and virtually indestructible, our AR800 portable electric fans are designed to withstand commercial and industrial use in factories, workshops, bakeries, laundries, gymnasiums, etc.

Designed for demanding applications

  • Tough, durable ABS case
  • Powder coated steel finger guards
  • Epoxy coated tubular steel frame
  • Sealed for life motor with class F insulation
  • Electronic speed control with separate on off switch

Portable and flexible
high volume fan
click to expand

The AR800 portable electric fan is completely portable, with large easy roll castors, and handles.

The adjustable stand allows the fan to be tilted and locked at any angle.



Activair AR800 portable fans - specification

Specification

Model   AR800- 230 AR800- 110
Max - min airflow M3/hr
CFM
9100 - 18000
5356 - 10595
Fan blade diameter mm 800
Supply voltage V 230 110
Maximum supply current A 3.7 8
Power W 860
Supply phase   1
Supply frequency Hz 50
Supply connection   1.8m lead fitted with
13A UK mains plug
1.8m lead fitted with
16A 3pin yellow BSEN60309 plug
IP rating   54
Weight Kg 110
Width mm 1570
Height mm 1290
Depth mm 545
Made in the UK - United Kingdom Activair high volume fans are manufactured in the UK, and are CE marked.

Electricity supply requirements.

The AR800 electric fan is designed for use with a 230V or 110V 50Hz electrical supply. It is suitable for use in the UK, most of Europe and the Middle East, but not the USA.

1 year warranty

Our fans are manufactured to the highest standards. We are confident they will give years of trouble free operation. However in the unlikely event a fault does occur, they have a full 1 year return to base parts and labour warranty.

Similar products

The AR800 is a powerful 800mm portable high volume fan, delivering a massive 18800M3/hr of cool air, enough for cooling and ventilation in the most demanding environments.

The AR800 is a very large fan (1570 x 1290 x 545mm), we strongly you check you have the space for this fan before ordering one. If you require a smaller version, the AR500 500mm fan produces up to 9100M3/hr click for more details.
