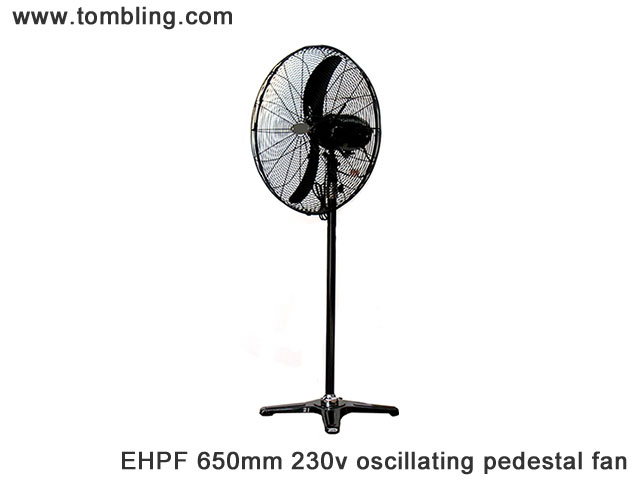

230v oscillating pedestal fans
pedestal mounted oscillating sweep fan
click to expand

3 speed height and sweep adjustable oscillating pedestal fans for use in large open spaces.

Fitted with metal 650mm (25in.) diameter fan blades these fans shouldn't be confused with much less powerful plastic fans currently on the market. Delivering an air flow rate of up to 8115cfm (13788m3/hr) they are not suitable for use in small or confined areas, or where a strong air flow is likely to disturb papers or workers.

Typical applications include marquees, tents, commercial laundries and kitchens, sports halls and gymnasiums, etc.

Features

  • Three speed settings
  • 2m power lead with 13A plug
  • Adjustable arc of oscillation from 0 to 90 degrees
  • High performance motor with built in thermal overload protection
  • Heavy duty cast iron base for added stability
  • Lockable height adjustment between 1460mm and 1860mm
  • Supplied in fit form for easy assembly

Construction

All metal construction with a heavy duty cast iron base. All components finished in a stylish, tough black epoxy powder coat.

Activair EHPF oscillating pedestal fans - specification

Specification

Model   EHPF
Airflow low - mid - high M3/hr
CFM
6588 - 10188 - 13788
3877 - 5996 - 8115
Fan speed low - mid - high r/min 890 - 1050 - 1380
Noise dBA @ 1m 55 - 59 - 68
Fan blade diameter mm 650
Supply voltage V 230
Full load current A 0.98
Power W 179
Supply phase   1
Supply frequency Hz 50
Supply connection   2m lead fitted with
13A UK mains plug
IP rating   54
Maximum operating temperature C 45
Weight Kg 23
Dimensions   Click for dimensions
Maximum tilt from horizontal deg 30
Height adjustment (min - max) mm 1460 - 1860
Price ex. delivery & VAT   £349.00
Price inc. delivery & VAT   quote for portable heater
Activair oscillating fans are CE marked.

Electricity supply requirements.

The EHPF pedestal fan is designed for use with a 230V 50Hz electrical supply. It is suitable for use in the UK, most of Europe and the Middle East. But not countries which use USA 60Hz supplies.

1 year warranty

Our fans are designed and manufactured with procedures as defined in BE EN ISO 9001:2000, and  we are confident they will give years of trouble free operation. However in the unlikely event a fault does occur, they have a full 1 year return to base parts and labour warranty.

Similar products

The same oscillating fan head is also available with a wall bracket for permanent installation.
