230v oscillating wall fans

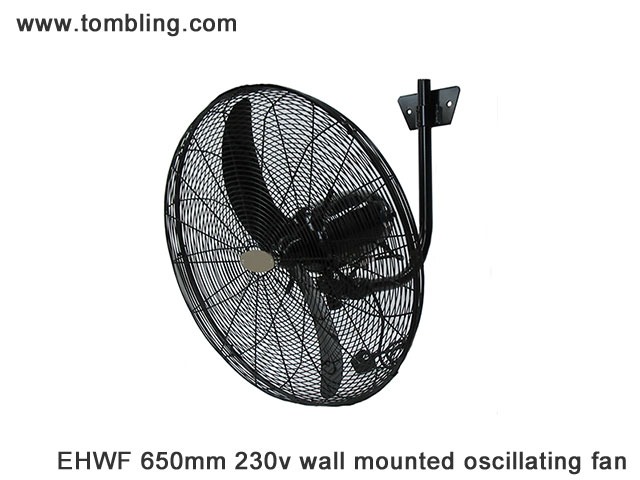

wall mounted oscillating sweep fan
click to expand

Designed for use in warehousing, gymnasiums, factories, and workshops, our 650mm (25in.) wall mounted oscillating fans provide powerful and effective air movement, thereby improving the environment in a wide range of industrial and commercial applications.

They should not be confused with much smaller plastic fans currently on the market. Featuring a balanced aluminium fan, they deliver an air flow rate of up to 8115cfm (13788m3/hr) and should not be used in very small or confined areas, or where the strong air flow is likely to disturb papers or workers, see the fan performance curve for more detailed information.

Features

  • Three speed settings (set by control knob on motor)
  • 2m power lead with 13A plug
  • Adjustable arc of oscillation from 0 to 90 degrees
  • Vertical (tilt) adjustment
  • High performance motor with built in thermal overload protection
  • Wire mesh finger guards with additional radial supports for improved stiffness
  • Supplied in kit form for ease of assembly

Construction

All metal construction with a heavy duty tubular wall bracket. All components finished in a stylish, tough black epoxy powder coat.

Activair EHWF wall mounted oscillating fans - specification

Specification

Model   EHWF
Airflow low - mid - high M3/hr
CFM
6588 - 10188 - 13788
3877 - 5996 - 8115
Fan speed low - mid - high r/min 890 - 1050 - 1380
Noise low - mid - high dBA @ 1m 55 - 59 - 68

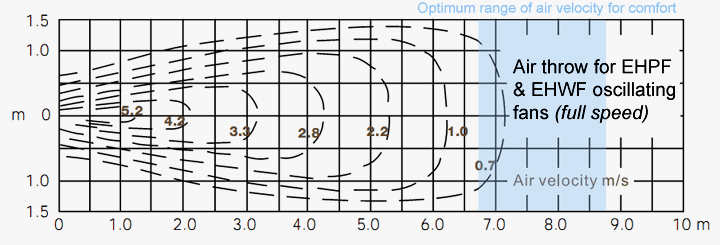

Air throw / speed   Click for fan performance curve
Fan blade diameter mm 650
Supply voltage V 230
Full load current A 0.98
Power W 179
Supply phase   1
Supply frequency Hz 50
Supply connection   2m lead fitted with
13A UK mains plug
IP rating   54
Maximum operating temperature C 45
Weight Kg 14.3
Dimensions   Click for dimensions
Maximum tilt from horizontal deg 30
Price ex. delivery & VAT   £299.00
Price inc. delivery & VAT   quote for portable heater
    In stock
Activair oscillating fans are designed and manufactured in accordance with BS EN ISO 9001:2000 and are CE marked.

Electricity supply requirements.

The EHWF wall mounted fan is designed for use with a 230V 50Hz electrical supply. It is suitable for use in the UK, most of Europe and the Middle East. But not countries which use USA 60Hz supplies.

1 year warranty

Our fans are designed and manufactured with procedures as defined in BE EN ISO 9001:2000, and  we are confident they will give years of trouble free operation. However in the unlikely event a fault does occur, they have a full 1 year return to base parts and labour warranty.

Similar products

The same oscillating fan head is also available on a height adjustable pedestal base for temporary or portable applications.
