Wall mounted electric space heaters

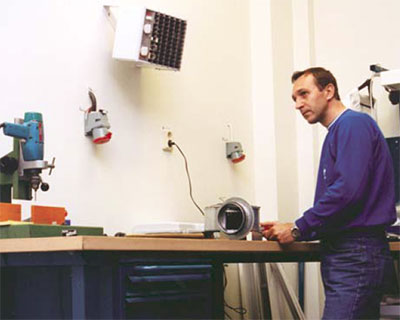

The FC series of wall mounted electric space heaters are quiet, compact fan heaters designed for permanent installation in small warehouses, workshops, factory units, etc.

They have built in thermostats, fan and output selector switches, and are supplied ready for installation with an angled mounting bracket.

The FC3 is configurable on site to operate from either a single phase 230V or 3 phase 400V electricity supply.

The FC5 and FC9 can only be used on a 3 phase 400V supply.

Features

Adjustable output – user selectable - off, reduced, or full output
Fan switch – user selectable - continuous or on/off with heating elements
Built in thermostat - user adjustable between +5 and +35C

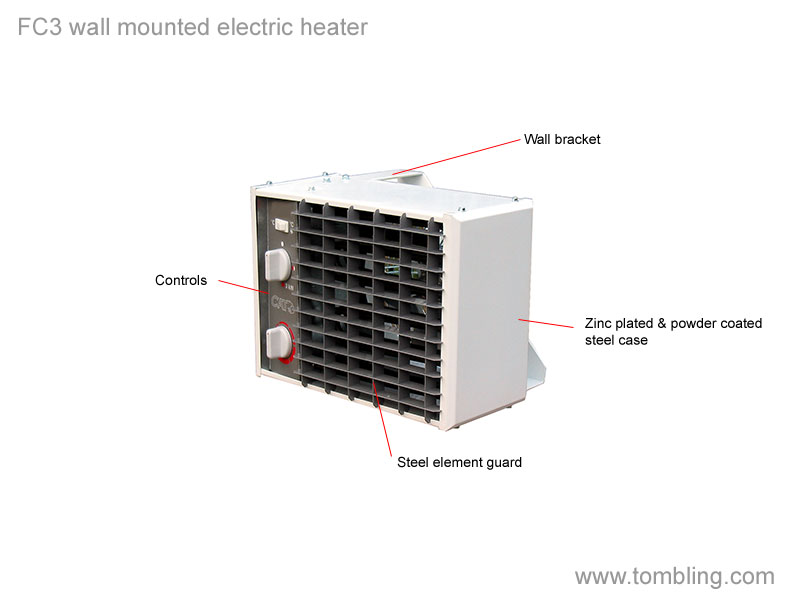

Corrosion resistant – hot zinc-plated and powder coated casing
Overheat protection – built in overheat cut-out with manual reset
Quick and easy installation – supplied with fixed wall bracket and drilling template

Activair wall mounted electric space heaters

Specification
Model		FC3	FC5	FC9
Element rating	W Btu/hr	3000 10230	5000 17050	9000 30690
Voltage	V	230 or 400	400	400
Power stages 230V 400V	kW kW	0 - 2 - 3 0 - 1.5 - 3	- 0 - 2.5 - 5	- 0 - 4.5 - 9
Maximum phase current 230V 400V	A A	13.2  4.4	-  7.3	-  13.1
Noise at 3m	dBA	41	40	44
Air volume	m3/h	280	480	720
Maximum temperature rise	C	32	31	37
Approximate throw	m	5	5	5
Built in thermostat	C	0 - 35	0 - 35	0 - 35
Protection class		IP 44	IP 44	IP 44
Weight	kg	6.3	6.7	10.2
Width	mm	355	355	405
Height	mm	255	255	315
Depth	mm	276	276	335
Wall bracket angle (downwards)	degrees	10	10	10
Price ex. delivery and VAT		£239.00	£279.00	£349.00
Price inc. delivery and VAT

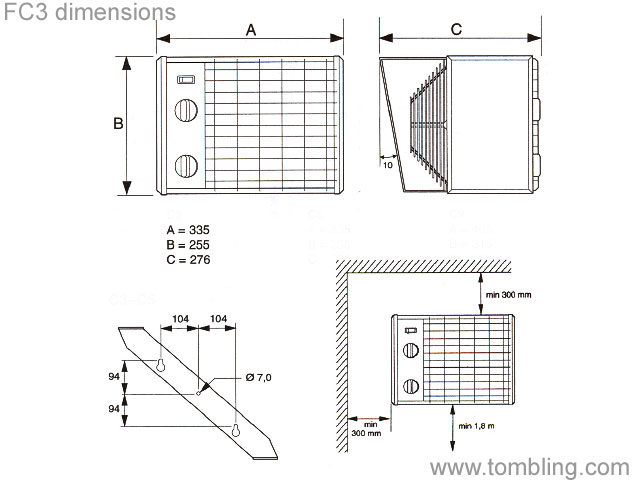

Click for Dimensions, mounting height and clearances.

Approvals for FC wall mounted electric space heaters

The FC range of electric space heaters have been tested and comply with the EC EMC 89/336/EEC and LVD 73/23/EEC directives. The FC range has CE approval.

Optional time switch

By installing and optional external time switch, FC series electric space heaters can be programmed to turn on and off at predetermined times. Heating the room before work commences, and minimising running costs by not operating at night when the premises are unoccupied.

Time switch for FC series heaters

Mains powered digital time switch with battery backup

Electricity connection

FC wall mounted space heaters are intended for permanent connection and must be installed by a suitably qualified person in accordance with local wiring regulations. They should be connected via an all pole isolator switch preferably fitted with an indicator light.

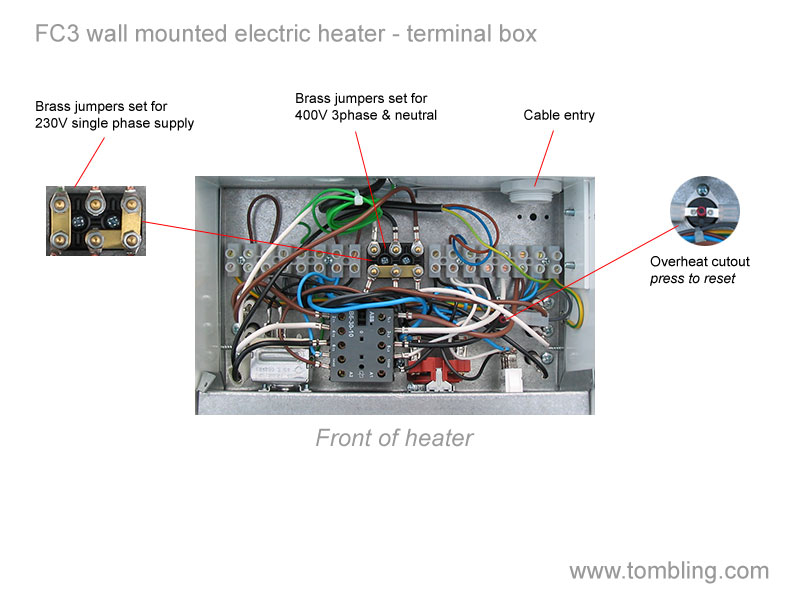

The FC3 is configurable on-site for either a 230v single phase or 400v three phase and neutral supply. See the wiring diagram for details.

The FC5 and FC9 require a 400V 3 phase and neutral supply. They cannot be used on a 230V single phase supply.

Our FC space heaters are suitable for use on 50Hz supplies but cannot be used on American 60Hz supplies.

Guarantee

FC wall mounted electric space heaters are built in the EU to the highest standards, and we are confident they will provide many years of trouble free service. However, in the unlikely event a fault does occur, they have a 1 year return to base parts and labour guarantee.

What you need to know before buying a wall mounted electric space heater:

• FC wall mounted heater manual pdf - print version
• What size space heater do I need? - everyone should read this!
• How warm are electric heaters?

FC wall mounted space heaters are compact, quiet and efficient. Their built in controls make them quick and easy to install, and with the addition of an optional external time switch they provide totally controllable heating for small factory units, workshops, storerooms etc.

Related Products:

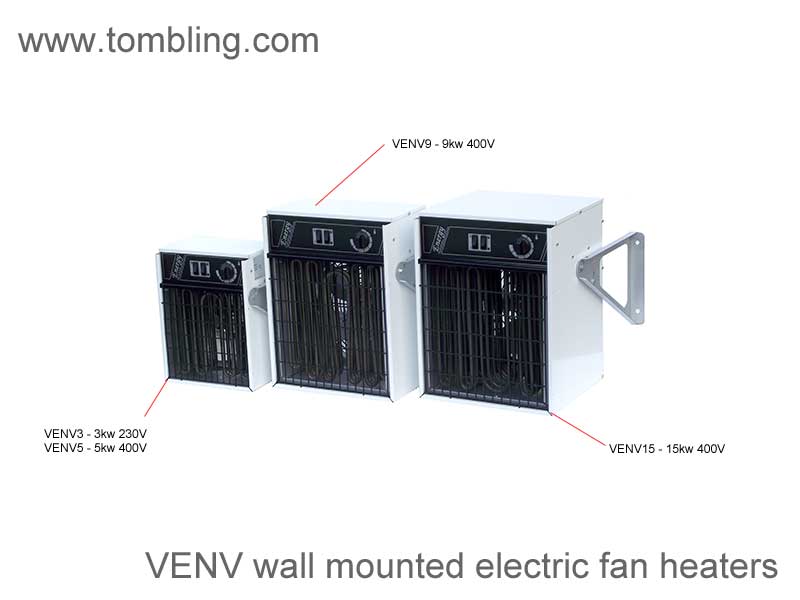

• 6 to 21kw 400V 3 phase wall mounted space heaters
